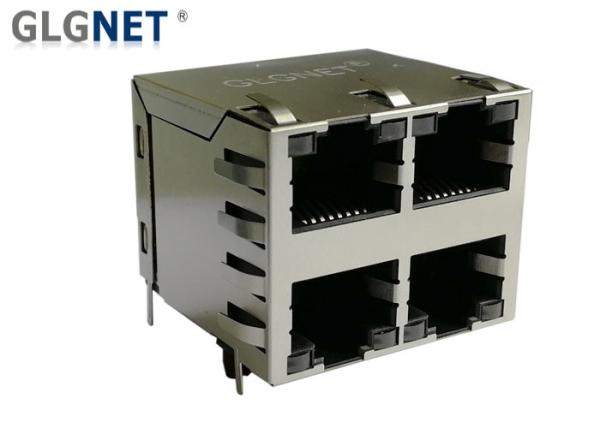

2x2 1G Magnetic RJ45 Right Angle Ethernet Jack Bi Color LED For 1G Network Ethernet

Brand Name : GLGNET

Model Number : JDKA2T826-D1D1

Certification : ISO9001, ISO1400, IECQ QC080000, UL, RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20kkports/month

Delivery Time : 10 working days

Packaging Details : Tray, Tube, Reel, Carton

Application : 1G Network Ethernet

Port Number : 2 x 2

LED Type : Green/Yellow Bi Color

Mounting : DIP

Housing Material : Glass filled PA46

EMI Tabs : With

Contact Now

2x2 1G Magnetic RJ45 Jack with Bi color LED DIP Mounting for 1G Network Ethernet

1. 2 x 2 ports Magnetic RJ45 Jack Structure
Shenzhen GLGNET Electronics Co.,Ltd supply 2 x 2 ports Magnetic RJ45 Jack, it with 8 green or yellow color LEDs, with 0.2mm Brass Shield, supports 10 / 100 / 1000 BASE -T application, it is widely usde for Industrial Switchers, Splitters;

2. Magnetic RJ45 Jack Product Attributes

Number of Ports	2x2
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	1.015
Package Height (mm)	25.78
Package Length (Inches)	1.118
Package Length (mm)	28.40
Package Width (Inches)	1.230
Package Width (mm)	31.25
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	10 / 100 / 1000 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

3. Magnetic RJ45 Jack Materials

Housing: Class Filled PBT UL94V-0 (ROHS)
Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface;
Shield: 0.2mm Thickness With Brass
Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
Operating Temperature: 0 ℃ to +70 ℃
Storage Temperature: -40 ℃ to +85 ℃

4. 2 X 2 Magnetic RJ45 Jack Electrical Specification:

Parameter	Specification
Brand	GLGNET
Operating Temperature	0 to 70 ℃
Turns Ratio	1:1±2%
Open Circuit	350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ;
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -16dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1 MHz – 100MHZ
HI - POT	2250 VDC @ 60 Seconds

5. 2 X 2 Magnetic RJ45 Jack ( JDKA2T826-D1D1 6U ) Attributes:

Part Number	JDKA2T826-D1D1 6U	Brand	GLGNET
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	RJ45 Modular Jack	Connector Style	RJ45
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Unavailable
Filter	With Filter	LED Option	Can be with or without LED
LED Color	Can Be Green/Yellow/ Orange/ Red etc	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Ethernet Hubs, Splitters, Switchers
Performance Speed	10 / 100 / 1000 Base T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	4	Number of Positions	RJ45 with 8P8C
Jack Configuration	2 x 2	Terminals per Port	RJ45 : 8
Shield Material	Brass	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole	Board Lock	Without Board Lock
Housing Material	Rj45 : Glass filled PA46 ( Black )	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

6. 2 X 2 Magnetic RJ45 Jack ( JDKA2T826-D1D1)Mechanical Drawing
2x2 1G Magnetic RJ45 Right Angle Ethernet Jack Bi Color LED For 1G Network Ethernet

7. Magnetic Schematic Drawing

8. GLGNET Advantages

Support Customization Service
We have our Own Hardware Mold and Plastic Mold
Has 3 LS-WEDM Machines
Has 12 WEDM Machines and 8 CNC Machines
Has 20 Grinding Machines and 12 Electrical Discharge Machines
Has 30 Stamping Machines
Has 55 Plastic Injection Machines
Has Automatic Assembly Workshops
20 years experiences in Magnetic RJ45 Connectors
1500 Employees
58 R&D Engineers.
22000 square meters Factory
We support Costom Service;
Our products are compliant with RoHS, REACH and UL certification
Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
20KK Prots / Month Capacity
ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
